Key Features:
– Utilize high efficiency IBC solar cell, up to 24% efficiency
– ETFE film as a protective top layer, making it thin, lightweight, durable and high self-cleaning
– Waterproof, scratch resistant, and UV resistant
– Ideal for IoT applications

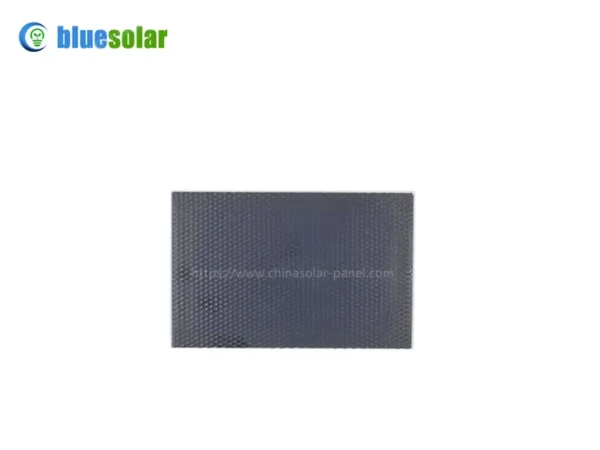

ETFE Solar Panel, 2V 0.9W
This ETFE solar panel utilizes high efficiency IBC solar cells with an efficiency up to 24%. These cells not only ensure high output, but also increase aesthetic appeal with no visible contact in the front. With SMT technology, the solar cell layout is easy, and customization is flexible. Laminated by ETFE film, this custom solar panel is thin, lightweight, durable and high self-cleaning. It is also waterproof, scratch resistant, and UV resistant, ensuring longevity and reliability.
Applications:
ETFE solar panels are widely used in IoT applications, marine buoys, wireless sensors, roller shutters, solar chargers, outdoor lighting systems, weather monitoring systems, and other small electronics.
Solar Panel Specification
Item no.: BS-B18
Solar Panel Size: 66×101.5×2.9mm
Solar Panel Output: 0.9 Watt
Voltage at Pmax (Vmp): 2.6 Volts
Current at Pmax (Imp): 346mA
Open circuit voltage (Voc): 3.1 Volts
Short circuit current (Isc): 380mA
Power tolerance: ±5%
Solar Cell Type: high efficiency IBC solar cells
Solar Panel Lamination: ETFE film laminated
Solar Panel Backsheet : Double sided FR4 PCB
Solar Panel Frame: frameless solar panel
Structure: ETFE film / EVA / Solar Cell / Double sided FR4 PCB
Product warranty: 2 years
Storage temperature: ‐40℃ ~ 85℃
Working temperature: ‐40℃ ~ 85℃
Standard Test Conditions (STC): 1000W/m2, 1.5AM, 25°C Cell temperature
Sales Term: EXW or FOB Shenzhen
MOQ: 1000pcs
Standard Leadtime: 25 days
OEM / Custom Service Available
Wire Soldering Available
Packing & Delivery
Packing: bubble bag / outer carton / pallet
Delivery: by sea or by air, depend on order quantity
