Key Features:
– High efficiency monocrystalline PERC solar cells,
up to 22.5% efficiency
– Sturdy tempered glass as a protective top layer,
making it rugged and durable
– Waterproof, UV- and scratch-resistant
– Anodizing aluminum frame design

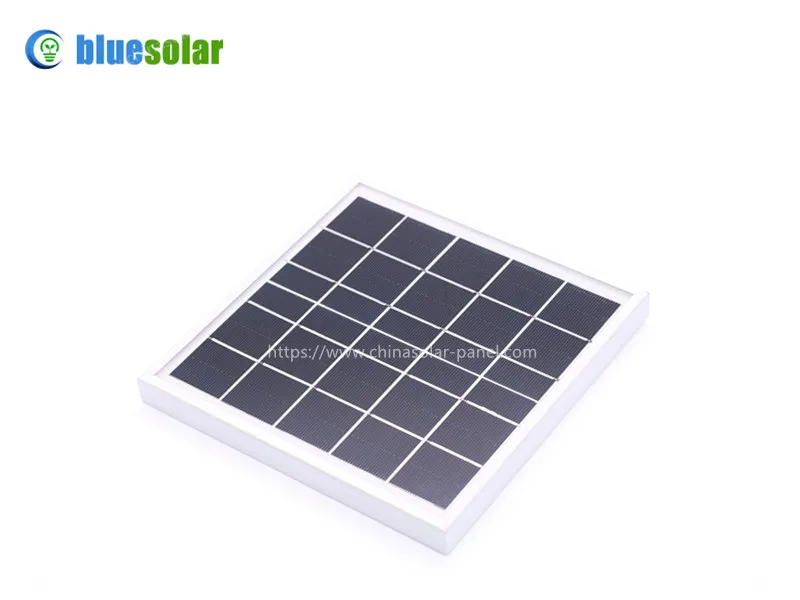

5V 5W Solar Panel
This 5W solar panel uses sturdy tempered glass as a protective top layer to protect solar cells inside, making it durable, waterproof, UV- and scratch-resistant, it is suitable for use in harsh outdoor conditions. Its anodizing aluminum frame design makes it safer to use.
This custom solar module uses monocrystalline PERC solar cells with an efficiency of up to 22.5% to ensure its high output power.
This durable and high-efficiency 5W solar panel is ideal for IoT applications, marine buoys, wireless sensors, traffic warning device, GPS asset tracking, electric fence chargers, and weather monitoring systems etc.
Solar Panel Specification
Item no.: BS-P01
Solar Panel Size: 185x185x15mm
Solar Panel Output: 5.5 Watt
Voltage at Pmax (Vmp): 5.5 Volts
Current at Pmax (Imp): 1A
Open circuit voltage (Voc): 6.6 Volts
Short circuit current (Isc): 1.1A
Power tolerance: ±5%
Solar Cell Type: mono PERC solar cells
Solar Panel Lamination: tempered glass laminated
Solar Panel Backsheet : TPT
Solar Panel Frame: anodized aluminum frame
Structure: Tempered glass / EVA / Solar Cell / EVA / Back sheet (TPT)
Product warranty: 5 years
Storage temperature: ‐40℃ ~ 85℃
Working temperature: ‐40℃ ~ 85℃
Standard Test Conditions (STC): 1000W/m2, 1.5AM, 25°C Cell temperature
Sales Term: EXW or FOB Shenzhen
MOQ: 500pcs
Standard Leadtime: 25 days
OEM / Custom Service Available
Wire Soldering Available
Packing & Delivery
Packing: bubble bag / outer carton / pallet
Delivery: by sea or by air, depend on order quantity
If you want to inquire this solar panel, please contact us at info@chinasolar-panel.com
Let’s Build Your Ideal Solar Solution! Contact us today for
