Key Features:
– High efficiency monocrystalline PERC solar cells,
up to 22.5% efficiency
– Sturdy tempered glass as a protective top layer,
making it rugged and durable
– Waterproof, UV- and scratch-resistant
– Frameless design

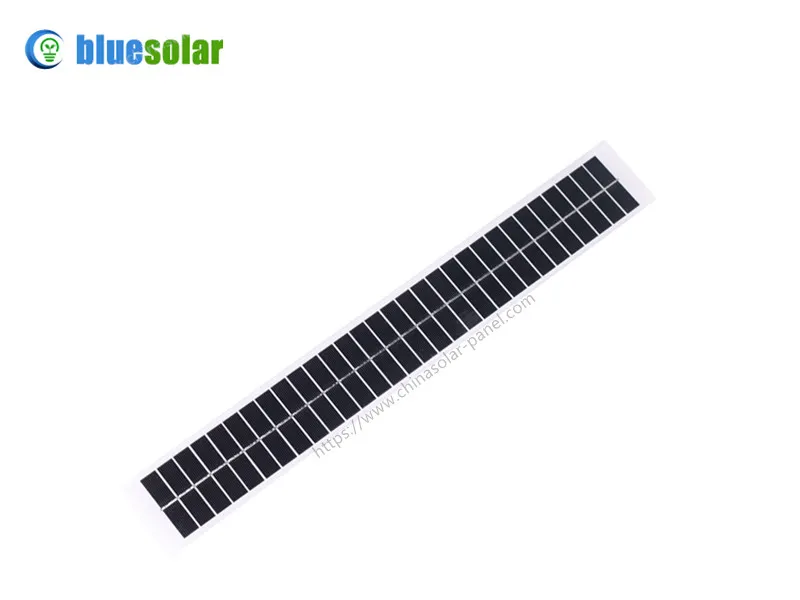

4W 15V Solar Panel
This 4W 15V solar panel uses sturdy tempered glass as a protective top layer to protect solar cells inside, making it durable, waterproof, UV- and scratch-resistant, it is suitable for use in harsh outdoor conditions.
The custom solar module uses monocrystalline PERC solar cells with an efficiency of up to 22.5% to ensure its high output power.
With a frameless design, it can be flexibly embedded into solar application products.
This rugged and high-efficiency 15V solar panel is ideal for roller shutters, IoT applications, wireless sensors, GPS asset tracking, and weather monitoring systems etc.
Solar Panel Specification
Item no.: BS-P06
Solar Panel Size: 462x63x4.5mm
Solar Panel Output: 4 Watt
Voltage at Pmax (Vmp): 15 Volts
Current at Pmax (Imp): 267mA
Open circuit voltage (Voc): 18 Volts
Short circuit current (Isc): 294mA
Power tolerance: ±5%
Solar Cell Type: mono PERC solar cells
Solar Panel Lamination: tempered glass laminated
Solar Panel Backsheet : TPT
Solar Panel Frame: frameless solar panel
Structure: Tempered glass / EVA / Solar Cell / EVA / Back sheet (TPT)
Product warranty: 5 years
Storage temperature: ‐40℃ ~ 85℃
Working temperature: ‐40℃ ~ 85℃
Standard Test Conditions (STC): 1000W/m2, 1.5AM, 25°C Cell temperature
Sales Term: EXW or FOB Shenzhen
MOQ: 500pcs
Standard Leadtime: 25 days
OEM / Custom Service Available
Wire Soldering Available
Packing & Delivery
Packing: bubble bag / outer carton / pallet
Delivery: by sea or by air, depend on order quantity
